Bio-soluble Fiber Module
Products Description

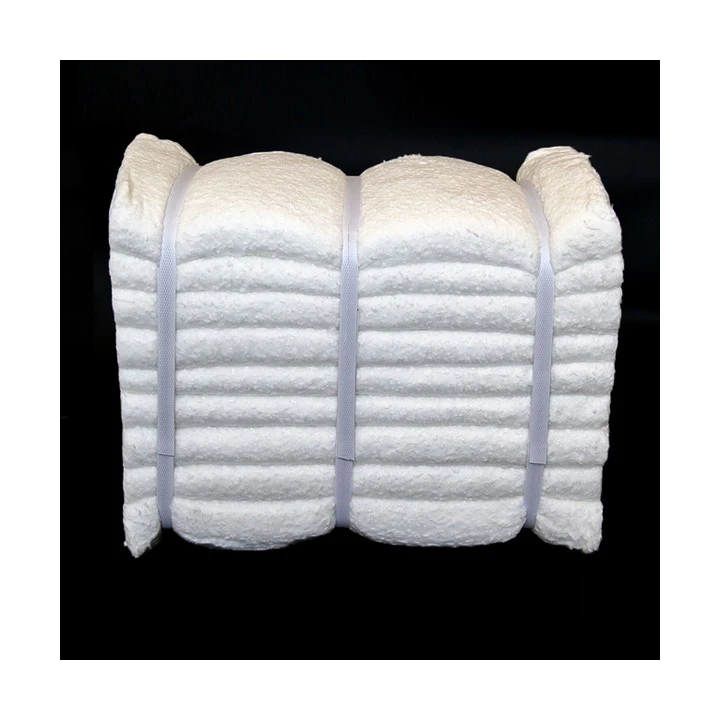

Bio Soluble Ceramic Fiber Modules For Industry Kiln are developed on the basis of traditional ceramic fibers. They are new refractory lining products launched to simplify and speed up kiln construction and improve the integrity of the lining. The main components are MgO and CaO. They integrate refractory, heat insulation and thermal insulation. They can be used in high temperature occasions. Biosoluble fibers can replace some traditional ceramic fibers. The use temperature can reach 1300℃ and they have excellent environmental protection performance.

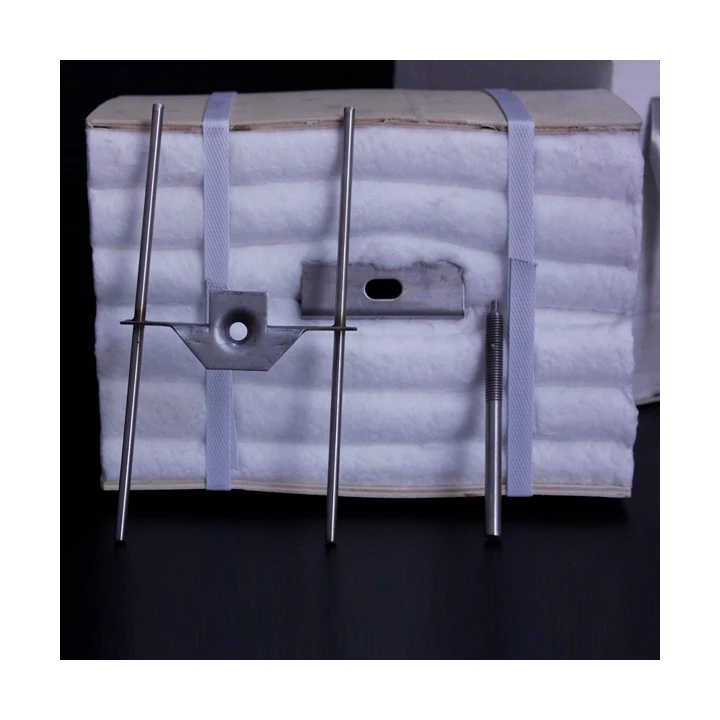

Bio Soluble Ceramic Fiber Modules For Industry Kiln are white in color and regular in size. They can be directly fixed on the anchor nails of the steel plate of the industrial kiln shell. They have good refractory and heat insulation effects, improve the integrity of the refractory and heat insulation of the kiln, and promote the progress of kiln masonry technology.
Features
- Excellent thermal insulation performance
- High high temperature tolerance
- Low heat storage
- High tensile strength and durability
- Lightweight and easy to install
- Biologically soluble
Applications
- Industrial kilns and furnaces
- Boilers and heaters
- Petrochemical and chemical processing
- Power industry
- Aerospace and automotive
Product Parameter
|
ITEM |
1100 MODULE |
1300 MODULE |
|
Classification Temperature (℃ ) |
1100 |
1300 |
|
Chemical Composition (%) |
||
|
SiO2 |
62-68 |
≥70 |
|
CaO |
26-32 |
- |
|
MgO |
4-7 |
- |
|
CaO+MgO |
- |
≥20 |
|
Color |
White |
White |
|
Density (kg/m³) |
160-220 |
160-220 |
|
Permanent Linear Shrinkage (%) |
1100℃ x 24h ≤1.0 |
1260℃ x 24h ≤3.0 |
|
Thermal Conductivity (W/m·K) |
||
|
400℃ |
0.07 |
0.07 |
|
600℃ |
0.11 |
0.13 |
|
800℃ |
0.17 |
0.20 |
|
1000℃ |
0.23 |
0.30 |
|
1200℃ |
- |
0.41 |
|
Size(mm) |
Length:300-600 Width: 300 Thickness:150-300 As customers' requirements |
|
FAQ
Q: Can you provide free samples?
A: Yes. Free samples!
Q: What is your minimum order quantity?
A: We don't have a specific minimum order quantity. We can accept orders for any different items. The price depends on the quantity.
Q: Can we visit your factory?
A: Yes! Of course, you are welcome to visit our factory in person or online!
