High-Performance Biosoluble Ceramic Fiber Paper

Product Overview

Compared with traditional ceramic fiber paper, Biosoluble Ceramic Fiber Paper not only maintains excellent heat resistance and thermal insulation performance, but also offers enhanced environmental degradability and occupational health safety. Its fiber structure can gradually dissolve in water environments, significantly reducing dust hazards during installation and use, while complying with mainstream international environmental standards.

The product is widely used in metallurgy, heat treatment, power generation, chemical processing, aerospace, and other industries. It is suitable for high-temperature equipment linings, insulation layers, fire barriers, and precision thermal management applications, making it one of the advanced materials promoting industrial energy efficiency and green manufacturing.

Product Features

Excellent High-Temperature Stability

Continuous operating temperature up to 1260°C, with short-term temperature resistance up to 1350°C, suitable for various harsh high-temperature environments.

Environmentally Friendly Soluble Design

The fibers are water-soluble and naturally degradable, significantly reducing respiratory health risks while complying with international environmental directives such as RoHS and REACH.

Lightweight, Flexible, and Easy to Process

Lightweight and highly flexible, easy to cut and shape, allowing excellent conformity to complex curved surfaces and irregular structures for convenient installation.

Efficient Thermal Insulation and Energy Saving

Extremely low thermal conductivity effectively minimizes heat transfer, improves thermal efficiency of equipment, and reduces energy consumption.

Good Mechanical Performance

Enhanced through special processing technology, providing high tensile and tear strength to maintain integrity during manufacturing, transportation, and installation.

Chemical Corrosion Resistance

Resistant to most acidic and alkaline media, making it suitable for corrosive environments such as chemical and metallurgical industries.

Fire-Safe and Non-Toxic

Non-combustible material that releases no toxic or harmful gases under high temperatures, ensuring equipment and personnel safety.

Technical Parameters

Manufacturing Process Flow

Raw Material Selection and Preparation

High-purity alumina, silica, and other inorganic raw materials are carefully selected, proportioned, and pretreated to ensure composition uniformity and chemical stability.

High-Temperature Melting and Fiberization

Raw materials are melted in electric arc furnaces or resistance furnaces at temperatures above 2000°C, then converted into continuous inorganic fibers through high-speed centrifugal spinning or blowing processes.

Slurry Preparation and Homogenization

The fibers are dispersed into slurry, combined with environmentally friendly binders and functional additives, and homogenized through high-speed stirring to form a stable and uniform fiber slurry.

Wet Forming and Dewatering

The slurry is transferred to Fourdrinier or cylinder paper machines, where it is evenly distributed, vacuum dewatered, and pressed into wet fiber sheets.

Drying and Heat Setting

The wet sheets pass through a multi-stage controlled drying system to remove moisture, followed by high-temperature heat treatment for structural setting and crystal phase transformation.

Surface Treatment (Optional)

Impregnation, coating, or calendering treatments can be applied according to customer requirements to provide additional properties such as waterproofing, reinforcement, or corrosion resistance.

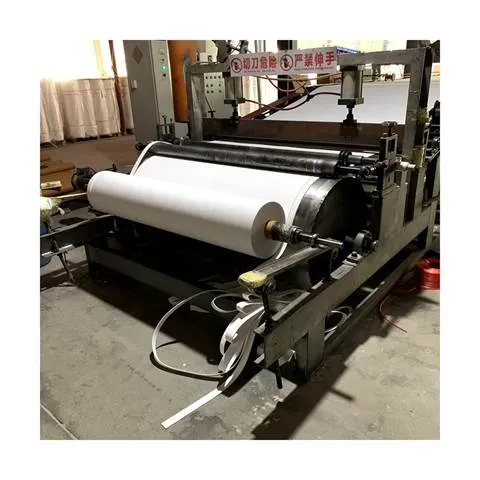

Precision Slitting and Quality Inspection

The product is cut into specified dimensions through a tension-controlled slitting system, with each batch undergoing testing for thickness, density, strength, and solubility.

Packaging and Storage

Moisture-proof sealed packaging is used, with technical specifications and environmental labels clearly marked. Products are stored in temperature-controlled dry warehouses.

Packaging Display

SUNTHERM has a professional and experienced team capable of providing customized packaging solutions for various products across different industries.

FAQ

Q1: How is the high-temperature performance of biosoluble fiber paper?

A1: The product has a continuous operating temperature of 1260°C and can withstand short-term temperatures up to 1350°C, making it suitable for most industrial high-temperature applications.

Q2: What are the specific environmental advantages of the product?

A2: The fibers are water-soluble and can gradually degrade naturally after use and disposal, significantly reducing dust hazards and environmental residue associated with traditional fiber materials. The product contains no asbestos or harmful substances and complies with international environmental regulations such as EU RoHS and REACH.

Q3: What standard specifications are available?

A3: Standard thickness ranges from 0.5–10 mm, with densities from 120–200 kg/m³. Common widths are 610 mm and 1220 mm. Customized dimensions and roll lengths are also available according to customer requirements.

Q4: Is installation convenient?

A4: Yes. The product has excellent flexibility and is easy to cut and shape. It can be installed using mechanical fastening methods (such as clips or straps) or directly bonded with high-temperature adhesives, enabling fast and convenient installation.

Q5: Does the product provide other protective properties besides heat resistance?

A5: Yes. The product offers excellent chemical corrosion resistance against most acidic and alkaline media. It also has good electrical insulation and non-combustible properties, releasing no toxic or harmful gases under high temperatures, providing both thermal and chemical protection.

Q6: What precision or special applications is the product suitable for?

A6: Due to its uniform texture and controllable thickness, the product is especially suitable for:

       ●    Thermal insulation protection for high-temperature sensors and thermocouples

       ●    Insulation layers for precision casting molds

       ●    Thermal management in lithium battery production equipment

       ●    Local heat shielding for semiconductor processing equipment

       ●    Insulation linings for laboratory high-temperature instruments

If you have special operating conditions or require technical selection support, our engineering team can provide targeted solutions.
